Tartozékok MCB-hez

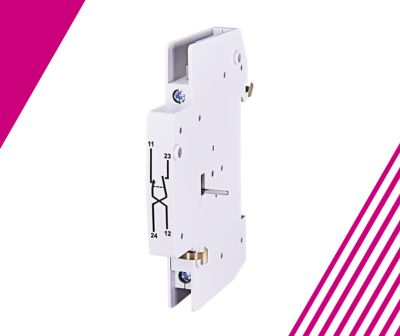

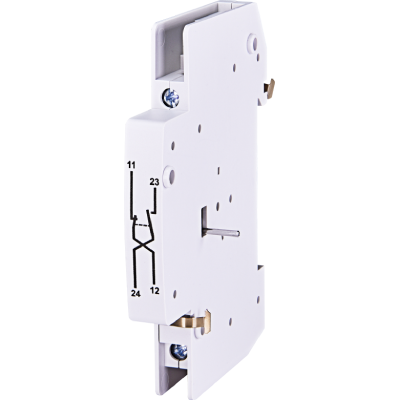

Auxiliary / Signal Switch (PS/SS ETIMAT P6/P10):

• Designed for remote signaling of the MCB's status.
• Attaches to the left side of the MCB.
• Can be fixed initially or added later.
• External dimensions are consistent with the MCB, with a built-in width of 0.5 module (9 mm).
• Clamps are safe to touch.
• Up to three PS/SS can be fitted to a single MCB using special connection springs.

WARNING: Do not install three auxiliary/signal switches on a single-pole MCB.

Technical Data:

• Rated voltage: 230V AC/DC, 110V DC.
• Rated frequency: 50/60Hz, DC.
• Index of protection: IP 20 (IP 40).
• Terminal capacity: 1,5mm².
• Terminal Screw: M3 PH1.
• Terminal torque: max. 0.5Nm.
• Contacts: 1x NC , 1x NC/NO.
• Connection Springs are available for installing two or three PS/SS switches.

Shunt Trip Release (DA ETIMAT P6/P10):

• Used for remote tripping of the MCB.

Type Codes available:

• DA ETIMAT P6/P10 12-60V AC/DC 001908411.
• DA ETIMAT P6/P10 110-250V AC/DC 001908412.
• DA ETIMAT P10/R 12-60V AC/DC 001908413.
• DA ETIMAT P10/R 110-250V AC/DC 001908414.

Auxiliary Switch (PSM 80/125):

• Contacts: 1x a-contact, 1x b-contact.
• Rated thermal current Ith: 8 A.
• Utilization category AC-13: 6 A / AC13 (250 V AC).
• Utilization category DC-13: 2 A/110 V DC; 0,5 A/230 V DC.

Shunt Trip Release (DA ETIMAT 80/125):

• Type Codes available:
• DA ETIMAT 80/125 12-60V AC/DC 002159320.
• DA ETIMAT 80/125 110-415V 002159321.
• Operating voltage range: 12 V...60 V AC / DC; 110 V...415 V AC / 110 V...230 V DC.

ETIMAT Terminal Cover:

Provides better protection of terminals against touching the parts under voltage.

Locking Device:

• Allows locking the handle in the "ON/OFF" position for safety during maintenance or to prevent unauthorized operation.
