Air switch disconnectors are essential components in low-voltage electrical installations, designed to provide safe disconnection of circuits for maintenance, inspection, or emergency shutdowns. They ensure a clear visual break between the power source and the downstream equipment, enhancing the safety of personnel working on de-energized systems.

004696612

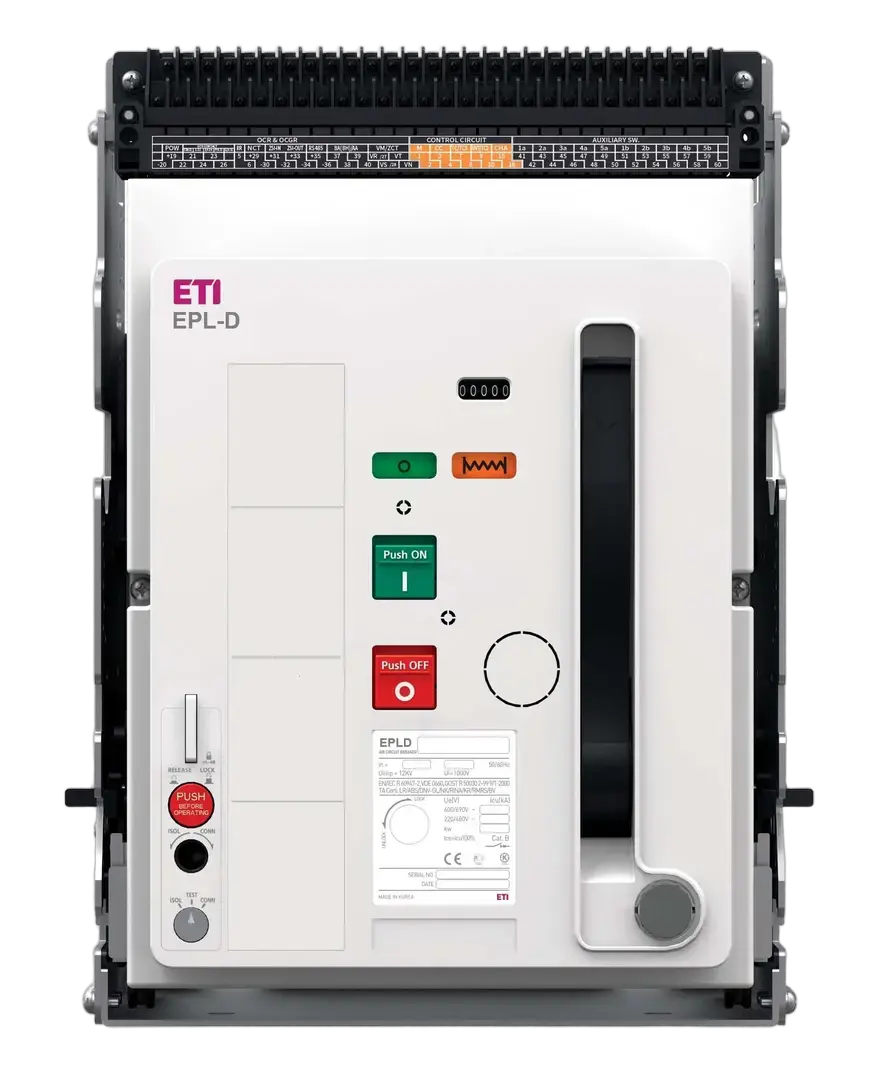

Kép erről: EPL-D-16 4H AD/M2C2S2

EPL-D-16 4H AD/M2C2S2 Szakaszoló kapcsoló

ETI kód:: 004696612
Alkalmazás:: 60947-3
Névleges lökőfeszültség állóság Uimp (kV):: 8 kV
Csatlakozás típusa:: Hátsó csatlakozás
Névleges üzemi feszültség (V AC):: 690 V
Pólusok száma:: 4
Szabványok:: 60947-3
Névleges áram:: 1600 A
Katalóguscsoport:: ETIPOWER

Termék

Tömeg: 72,93 kg
Stock unit of measure: pcs

Alapcsomagolás

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400107497
Basic packaging weight: 73,43 kg
Basic Packaging Dimensions Height: 413 mm
Basic Packaging Dimensions Width: 460 mm
Basic Packaging Dimensions Depth: 368,4 mm
Basic packaging volume: 69,989 dm³

Szállítási csomagolás

Intermediate packaging quantity: 1 pcs
EAN code for a intermediate packaging: 3838400107503
Intermediate packaging weight: 77,93 kg
Intermediate Packaging Dimensions Height: 600 mm
Intermediate Packaging Dimensions Width: 700 mm
Intermediate Packaging Dimensions Depth: 600 mm
Transport packaging quantity: 6 pcs
EAN code for a transport packaging: 3838400107510
Transport packaging weight: 688 kg
Transport Packaging Dimensions Height: 2 140 mm
Transport Packaging Dimensions Width: 1 460 mm
Transport Packaging Dimensions Depth: 840 mm
Transport packaging volume: 2 624,496 dm³
Pallet quantity: 6 pcs
Customs tariff: 85362090

Motor drive optional: Igen
Complete device with protection unit: Igen
Rated permanent current Iu: 1 600 A
Motor drive integrated: Igen
Degree of protection (IP): IP20
Type of control element: Push button
Position of connection for main current circuit: Back side
Integrated earth fault protection: Igen
Type of electrical connection of main circuit: Connection at separate chassis part
Number of poles: 4
Device construction: Built-in device slide-in technique (withdrawable)
With switched-off indicator: Igen
Rated voltage(Min): 690 V
Rated voltage(Max): 690 V

ETIM osztályozás – 9.0 verzió
